LED linear light trough aluminum U-shaped line light
Product Introduction

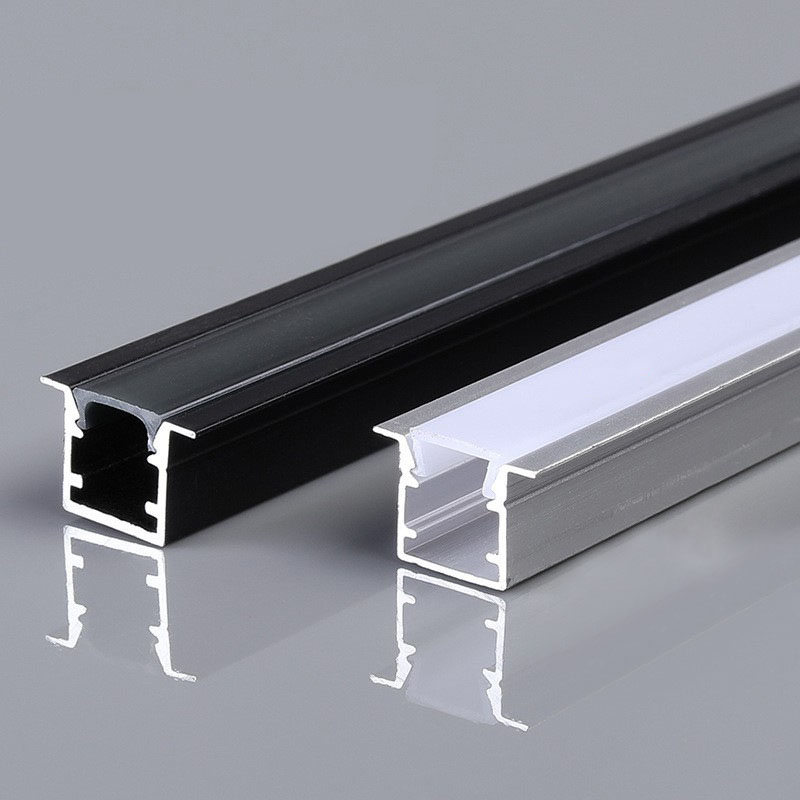

Structural components made of extruded aluminum, shaped in a U-shaped groove. It is used as a casing for LED strip lights, providing mechanical support, heat dissipation, and a stylish aesthetic.
Linear lighting fixtures with LED technology designed for continuous, homogeneous illumination. Easily cut to size for seamless integration into architectural elements. Can be mounted on walls, ceilings or cabinets.
Aluminum groove acts as a heat sink to extend the life of the LEDs by reducing thermal stress. LED technology consumes less power than conventional lighting, resulting in lower energy costs.

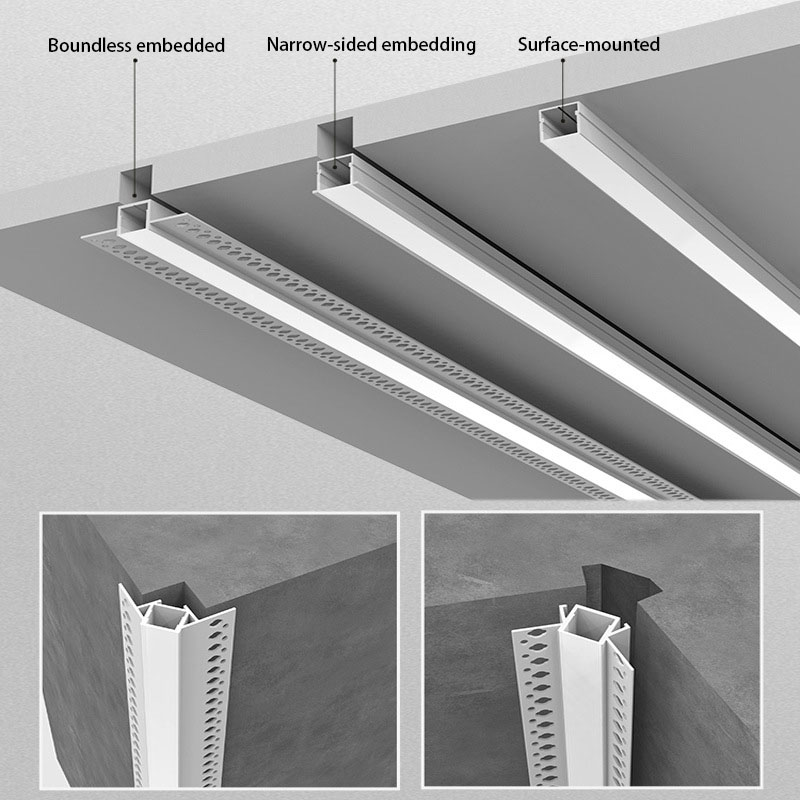

Install the U-groove into a pre-cut groove in the wall or ceiling for a flush finish. Attaches directly to the surface using clips or screws, making it ideal for retrofit projects.
Some products have IP65 and above protection rating, which is suitable for wet or outdoor environments. Customers can customize parameters such as length, power, light color and so on according to their needs to meet personalized design.
Parameters
| Product Name | LED linear light trough aluminum U-shaped line light |
| Material | Aluminum |
| size | OEM |
|
Electric |
Input voltage: DC24V (safety voltage, low power consumption) Power: 8W/m - 20W/m (according to lamp density and power selection) Luminous Flux: 800lm/m - 1500lm/m (high light output) Color temperature: 2700K - 6500K (warm white, full white, cool white optional, support RGB/RGBW full color) |
|
Installation |
Indoor: IP20 (Basic Protection) Flush installation (need to pre-embed aluminum slot) Surface-mounted mounting (with snap-on or screw-fastening) Lifting installation (with hanging wire or wire) |
| Fittings |
Plugs, connectors, mounting brackets, power adapters Light transmittance (PC/PMMA material, light transmittance≥90%) |
Application
Home space applications

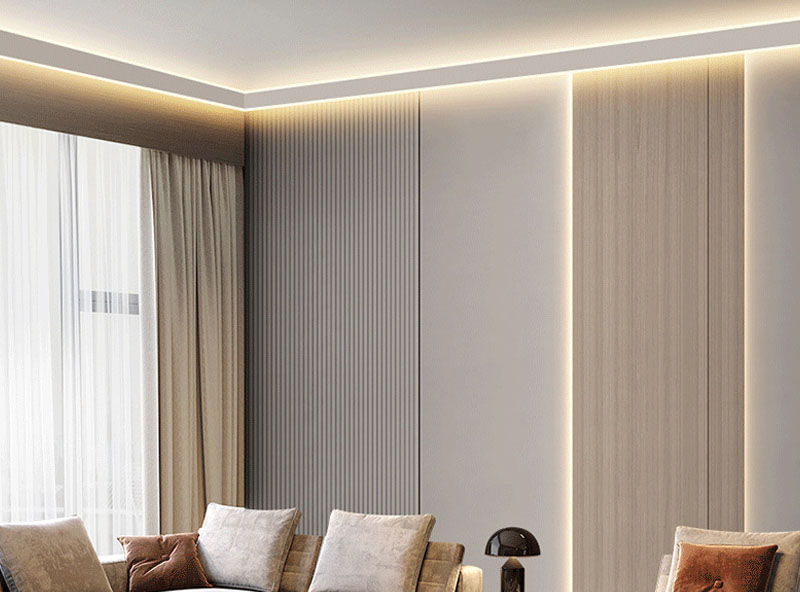

Suspended ceiling in the living room
Application diagram example: Recessed U-shaped aluminium groove lamps are arranged along the edge of the ceiling to form a "double eyelid" shape, and the light is softly diffused to the wall, creating a sense of spatial hierarchy.
Function: basic lighting atmosphere creation, color temperature adjustable (such as 3000K warm white light).
Kitchen cupboards
Application diagram: A U-shaped aluminium groove light is installed under a cabinet to illuminate the worktop and avoid shadows.
Function: task lighting, waterproof and dustproof (IP65 rating).
Stair treads
Example of an application diagram: A U-shaped aluminium slot light is embedded along the side of the staircase, and the light is lit up step by step to form a guiding light band.
Function: Safety lighting decoration, support intelligent induction control.
Suspended ceiling in the living room
Application diagram example: Recessed U-shaped aluminium groove lamps are arranged along the edge of the ceiling to form a "double eyelid" shape, and the light is softly diffused to the wall, creating a sense of spatial hierarchy.
Function: basic lighting atmosphere creation, color temperature adjustable (such as 3000K warm white light).
Kitchen cupboards
Application diagram: A U-shaped aluminium groove light is installed under a cabinet to illuminate the worktop and avoid shadows.
Function: task lighting, waterproof and dustproof (IP65 rating).
Stair treads
Example of an application diagram: A U-shaped aluminium slot light is embedded along the side of the staircase, and the light is lit up step by step to form a guiding light band.
Function: Safety lighting decoration, support intelligent induction control.
Commercial space applications
Clothing store display wall
Example of an application diagram: A U-shaped aluminum slot light is mounted vertically on the wall to accentuate the contours of the garment with an adjustable color temperature (2700K-6500K).
Function: Accent lighting, enhance the texture of goods.
Office hallway
Application diagram example: U-shaped aluminum groove lights are continuously arranged on the top of the corridor to form a linear light band with uniform light effect.
Function: basic lighting, energy-saving and efficient (light efficiency≥ 100lm/W).
Hotel lobby
Example of application diagram: The U-shaped aluminium groove lamp is combined with the building structure to outline the contour of the dome, and the light changes dynamically.
Function: Atmosphere creation, support RGB full color control.
Clothing store display wall
Example of an application diagram: A U-shaped aluminum slot light is mounted vertically on the wall to accentuate the contours of the garment with an adjustable color temperature (2700K-6500K).
Function: Accent lighting, enhance the texture of goods.
Office hallway
Application diagram example: U-shaped aluminum groove lights are continuously arranged on the top of the corridor to form a linear light band with uniform light effect.
Function: basic lighting, energy-saving and efficient (light efficiency≥ 100lm/W).
Hotel lobby
Example of application diagram: The U-shaped aluminium groove lamp is combined with the building structure to outline the contour of the dome, and the light changes dynamically.
Function: Atmosphere creation, support RGB full color control.
Public space applications
Subway platforms
Application diagram example: U-shaped aluminum groove lights are embedded along the edge of the platform, and the light brightness can be adjusted to meet the needs of different time periods.
Function: safety lighting, high degree of protection (IP67).
Atrium of the mall
Application diagram example: U-shaped aluminium flute lights are suspended from the top of the atrium, creating a vertical column of light that interacts with the building's glass curtain wall.
Function: Decorative lighting, enhance the sense of transparency of the space.
Industrial lighting applications
Factory floor
Application diagram example: U-shaped aluminum groove lights are hoisted on the top of the workshop and arranged continuously to provide uniform illumination over a large area.
Function: task lighting, long life (≥ 50,000 hours).
Warehouse shelves
Example of an application diagram: A U-shaped aluminium slot light is installed under the shelf shelves to illuminate the cargo labels.
Function: Local lighting, energy saving and high efficiency.
Subway platforms
Application diagram example: U-shaped aluminum groove lights are embedded along the edge of the platform, and the light brightness can be adjusted to meet the needs of different time periods.
Function: safety lighting, high degree of protection (IP67).
Atrium of the mall
Application diagram example: U-shaped aluminium flute lights are suspended from the top of the atrium, creating a vertical column of light that interacts with the building's glass curtain wall.
Function: Decorative lighting, enhance the sense of transparency of the space.
Industrial lighting applications
Factory floor
Application diagram example: U-shaped aluminum groove lights are hoisted on the top of the workshop and arranged continuously to provide uniform illumination over a large area.
Function: task lighting, long life (≥ 50,000 hours).
Warehouse shelves
Example of an application diagram: A U-shaped aluminium slot light is installed under the shelf shelves to illuminate the cargo labels.
Function: Local lighting, energy saving and high efficiency.
