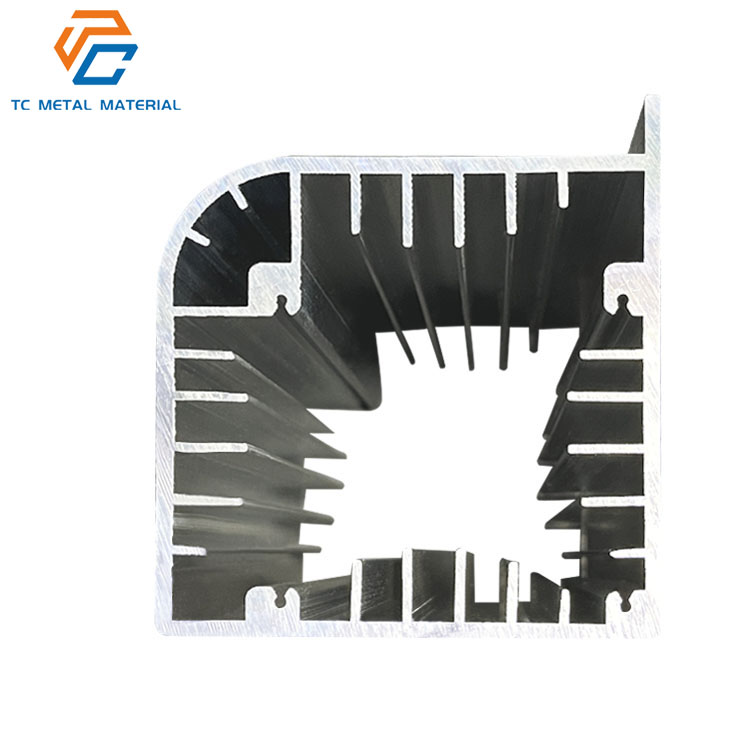

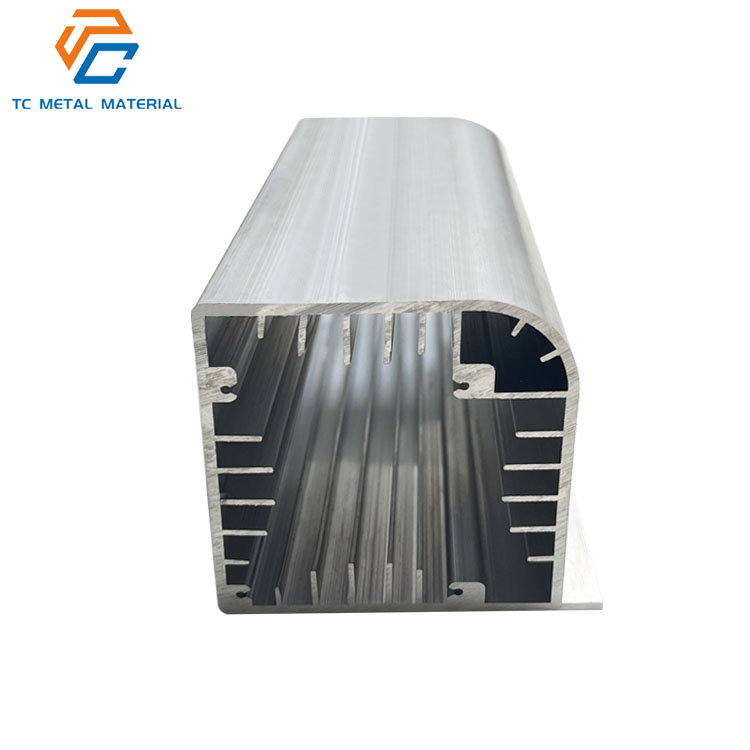

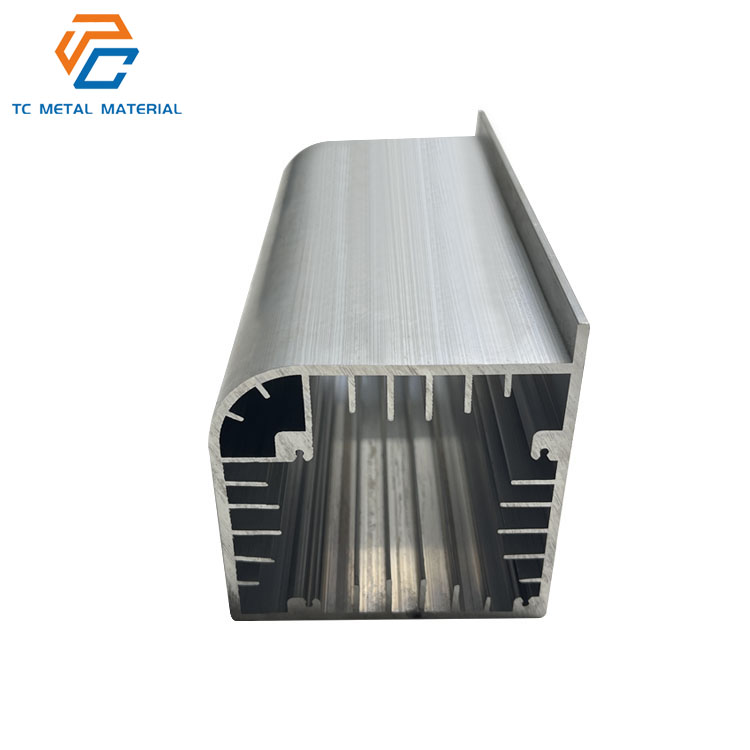

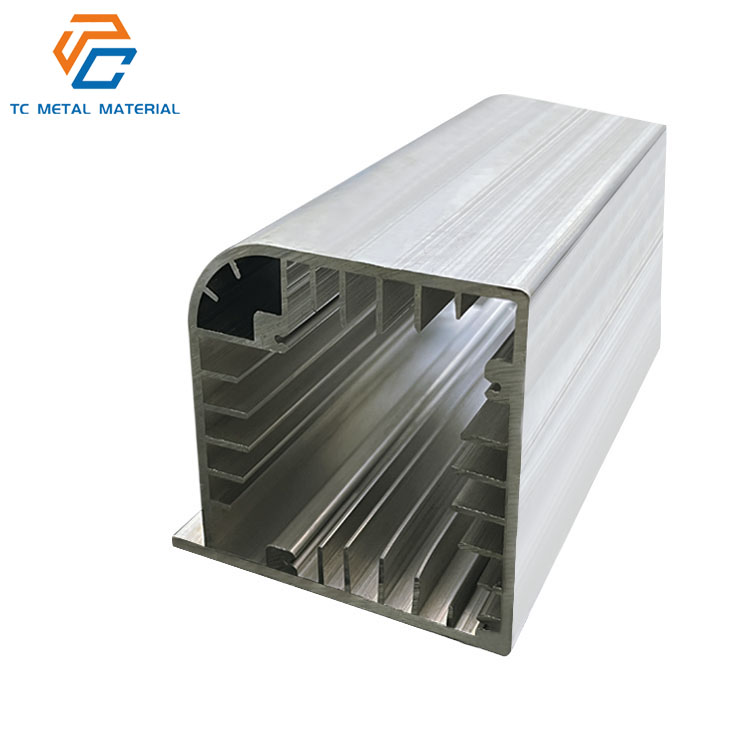

Radiator Aluminum Profile Shell
Product Introduction
Aluminum has a fast thermal conductivity and comes with integrated heat-dissipating fins, which can quickly release the working heat of the device, effectively reducing internal temperature and preventing components from aging or being damaged due to high temperatures.
The material has a low density, making it lighter in weight compared to iron or steel shells, reducing the overall weight of the equipment, facilitating installation and handling, and suitable for lightweight equipment design.
High structural hardness, resistant to compression and impact, not easily deformed; after surface treatments such as anodizing, it is moisture-proof, rust-proof, and oil-resistant, suitable for various complex indoor and outdoor conditions.
Radiator Aluminum Profile Shell is integrally extruded, with few splicing gaps, preventing dust, water, and dirt from entering the equipment, thus protecting the wiring and circuit boards. It can be freely cut to length, drilled, tapped, and milled, with dimensions, shapes, and colors all customizable.
Parameters
| Product Name | Radiator aluminum profile casing |
| Material |
Aluminum 6063, 6061 etc.
|
| Surface treatment： | Can be customized, such as mill finished, anodized, electroplating, power coated, painted, silver matt, sand blasted, PVDF etc. |
| Ease of machinability | Complex fin structures can be achieved through extrusion, die casting, and CNC milling; |
| Corrosion resistance: | Salt spray test can last up to more than 150 hours after anodizing. |
| Electrophoresis / Spraying | 15-30 μm thickness for enhanced weather resistance. |
Application
1. Power supply and electrical appliances field: Switching power supplies, adapters, charging pile power supplies, LED driver power supplies, regulated power supply enclosures quickly dissipate the heat generated by circuit operation, ensuring stable power supply.
2.New Energy Industry: Lithium battery protective cases, energy storage module enclosures, photovoltaic inverters, and vehicle-mounted electronic control heat dissipation housings, suitable for the high-power heat dissipation needs of new energy equipment.
3. Industrial Automation: Frequency converter enclosures, PLC controllers, servo drives, relay modules, industrial control motherboard enclosures, suitable for complex workshop conditions.

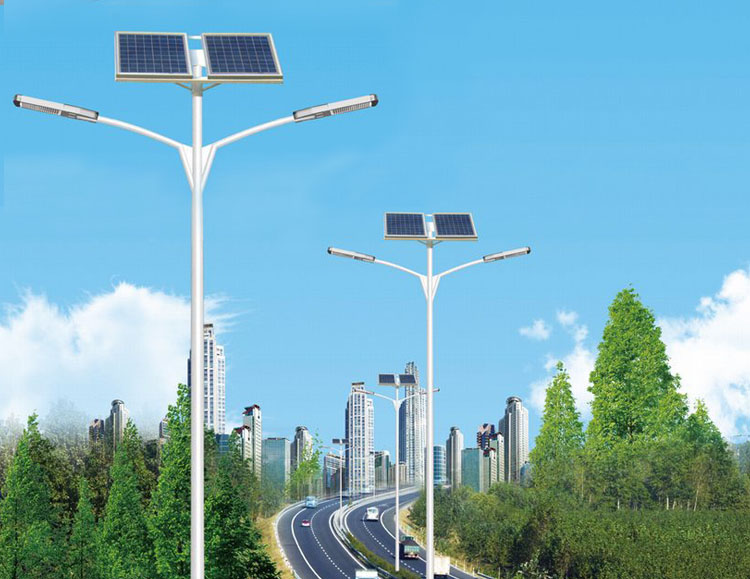

4. Lighting and lamp industry: High-power industrial and mining lamps, street lights, landscape lights, stage light heat dissipation housings, integrated heat dissipation structure extends the service life of lamps.
5. Communication electronic devices: router, base station module, signal amplifier, vehicle communication equipment casing, while considering both heat dissipation and electromagnetic protection.
6. Medical Equipment: Small medical control modules, built-in heat dissipation housings for testing instruments, lightweight, low-noise, safe, and corrosion-resistant.
